• A step-by-step setup for EdgeRouter X
• Clear firewall and NAT rules to protect your network
• How to configure IPSec pre-shared keys and L2TP settings
• Client configuration examples for Windows, macOS, and iOS
• Troubleshooting tips and common pitfalls
• Links to useful resources at the end

Useful URLs and Resources text only
Apple Website – apple.com
OpenSSH – github.com/openssh/openssh-portable
EdgeRouter X Product Page – cisco.com
IPSec Wikipedia – en.wikipedia.org/wiki/IPsec
L2TP Wikipedia – en.wikipedia.org/wiki/L2TP
Netsec List – example.com/netsec

Table of Contents

• Prerequisites and assumptions
• Network planning and IP addressing
• EdgeRouter X basic setup recap
• IPSec and L2TP concepts in brief
• Step-by-step: Configure L2TP over IPSec on EdgeRouter X
  • Create VPN server configuration
  • Firewall and NAT rules
  • Client access configuration
  • Testing the VPN
• Security considerations
• Common issues and fixes
• Advanced tips
• Frequently Asked Questions

Prerequisites and assumptions

• EdgeRouter X router with the latest EdgeOS firmware
• Admin access to the EdgeRouter X web UI or SSH
• A static public IP address or a dynamic DNS setup for your router
• Basic understanding of networking terms IP, subnet, NAT, firewall
• A VPN client device Windows, macOS, iOS, Android for testing

Network planning and IP addressing

• Internal VPN network: choose a private subnet that doesn’t clash with your LAN, e.g., 10.10.10.0/24
• VPN client addressing: server will hand out 10.10.10.0/24 addresses
• Public IP/DNS: ensure you know how to reach your EdgeRouter X from outside your network; consider a Dynamic DNS name if you don’t have a static IP
• Port considerations: L2TP uses UDP ports 1701, 500, and 4500 for IPSec

EdgeRouter X basic setup recap

• Make sure you’ve updated to the latest firmware
• Confirm SSH or Web UI access is enabled
• Ensure your LAN is functioning properly before adding VPN

IPSec and L2TP concepts in brief

• IPSec Secures the L2TP tunnel between client and server
• L2TP provides the VPN tunnel; IPSec provides encryption
• Pre-shared key PSK is a common authentication method; you can also use certificates for stronger security
• Always use a strong PSK if you’re sticking with PSK-based IPSec

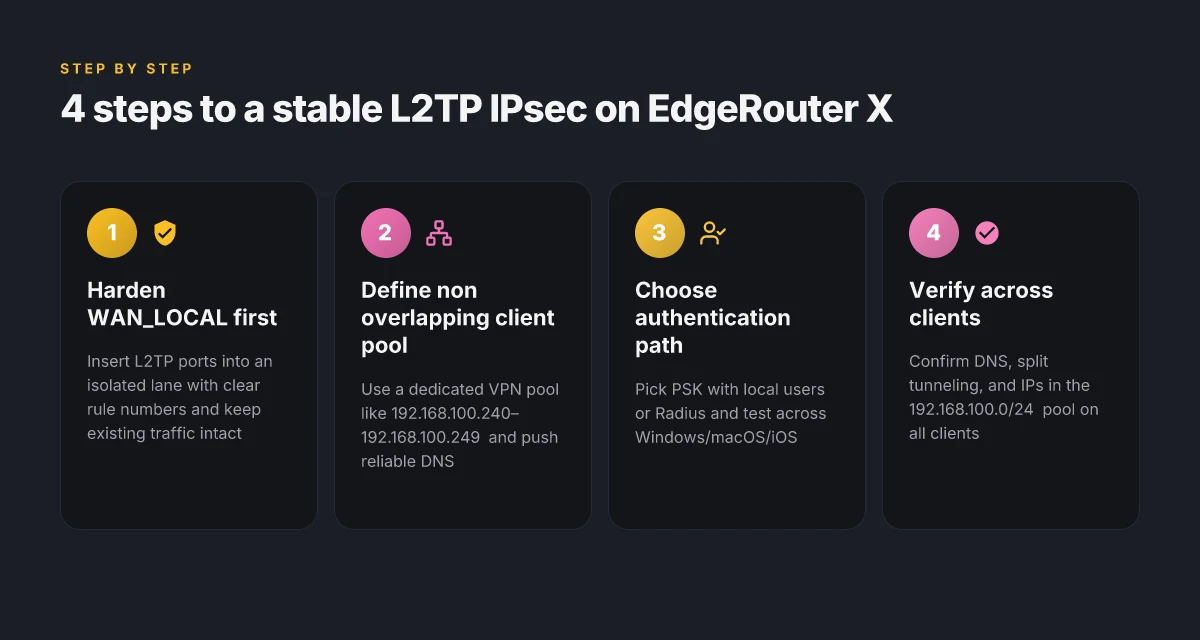

Step-by-step: Configure L2TP over IPSec on EdgeRouter X

Create VPN server configuration

1. Access EdgeRouter X via SSH or Web UI
2. Set the internal VPN subnet and enable L2TP over IPSec
3. Define the PSK for IPSec
4. Configure L2TP server parameters address pool, max clients

Commands example for SSH:

• configure
• set vpn l2tp remote-access authentication mode local
• set vpn l2tp remote-access authentication local-users username vpnuser password yourStrongPassword
• set vpn l2tp remote-access client-ip-pool start 10.10.10.10
• set vpn l2tp remote-access client-ip-pool stop 10.10.10.254
• set vpn l2tp remote-access ipsec-settings ike-group 1
• set vpn l2tp remote-access ipsec-settings ikev2 “”
• set vpn l2tp remote-access ipsec-settings pre-shared-secret yourPSK
• set vpn l2tp remote-access outside-address your.public.ip.or.ddns
• set vpn l2tp remote-access outside-nat 0.0.0.0
• set vpn l2tp remote-access outside-address-nat enable
• commit
• save

Firewall and NAT rules

• Allow UDP 500, 4500, and 1701 from any to the EdgeRouter X public interface
• Create a firewall rule to allow L2TP over IPSec traffic
• Example in EdgeOS terms:
  • set firewall name WAN-IN rule 30 action accept
  • set firewall name WAN-IN rule 30 description “Allow L2TP/IPSec”
  • set firewall name WAN-IN rule 30 destination port 500,4500,1701
  • set firewall name WAN-IN rule 30 protocol udp
  • set firewall name WAN-IN rule 30 state new enable
• Attach the firewall to the WAN interface:
  • set interfaces ethernet eth0 firewall in name WAN-IN
• Create a NAT rule to allow VPN clients to reach the LAN:
  • set nat source rule 100 outbound-interface eth2 or the LAN interface
  • set nat source rule 100 source address 10.10.10.0/24
  • set nat source rule 100 translation address masquerade
• Ensure LAN side routes know how to reach VPN clients: 10.10.10.0/24 should be reachable via the EdgeRouter

Client access configuration

• Create a local user for VPN access
  • set vpn l2tp remote-access authentication mode local
  • set vpn l2tp remote-access authentication local-users username vpnuser password yourStrongPassword
• For macOS/iOS, Windows, Android clients, configure L2TP over IPSec with:
  • Server address: your public IP or DNS
  • Account name: vpnuser
  • Password: yourPassword
  • Shared secret PSK: yourPSK

Testing the VPN

• Windows:
  • Open Network & Internet settings > VPN > Add a VPN connection
  • VPN type: L2TP/IPSec with a pre-shared key
  • Enter server address and credentials
  • Connect and verify IP address assignment from 10.10.10.0/24
• macOS:
  • System Preferences > Network > + > VPN > L2TP over IPSec
  • Enter server, account, and PSK
  • Connect and check VPN status
• iOS:
  • Settings > VPN > Add VPN Configuration > L2TP over IPSec
  • Enter server, account, and PSK
  • Connect and verify IP
• Verify connectivity:
  • Ping a LAN resource from the client, or check your public IP shows the VPN’s exit point
  • Try accessing internal resources file shares, printers, intranet pages

Security considerations

• Use strong PSK; consider transitioning to certificate-based IPSec if possible
• Disable split tunneling if you want all traffic to route through VPN
• Regularly rotate VPN credentials and PSKs
• Keep the EdgeRouter firmware up to date
• Enable logging for VPN connections and monitor for unusual activity

Common issues and fixes

• Issue: VPN cannot connect
  • Check PSK and username/password
  • Ensure correct server address public IP or DNS
  • Verify firewall rules permit UDP 500, 4500, 1701
• Issue: VPN connects but no traffic routes to LAN
  • Check NAT rules and LAN routes
  • Confirm VPN clients receive correct IP from VPN pool
• Issue: IPSec phase 1/2 negotiation fails
  • Reconfirm PSK and ike-group settings
  • Check time synchronization on EdgeRouter and clients
• Issue: Dynamic IP from ISP causing dropouts
  • Use Dynamic DNS and ensure port-forwarding remains intact
• Issue: Windows client shows “Can’t connect to VPN server”
  • Re-check certificate or PSK; ensure L2TP is enabled
• Issue: Slow VPN performance
  • Verify hardware resources on EdgeRouter X
  • Consider adjusting MTU/MRU settings

Advanced tips

• Use a dedicated VPN subnet different from your LAN for better isolation
• Consider using per-user authentication with unique credentials
• Enable logging and set up alerts for failed VPN attempts
• If you need site-to-site VPN in the future, explore IPSec policy tweaks and routing
• For iPhone users, ensure iOS supports L2TP with your PSK in your version older iOS may need updates

Frequently Asked Questions

What is L2TP over IPSec?

L2TP provides the VPN tunnel; IPSec provides encryption. Together they create a secure connection between your client and the EdgeRouter X.

Do I need a static IP to use this setup?

A static IP makes remote access simpler, but you can use Dynamic DNS to handle IP changes.

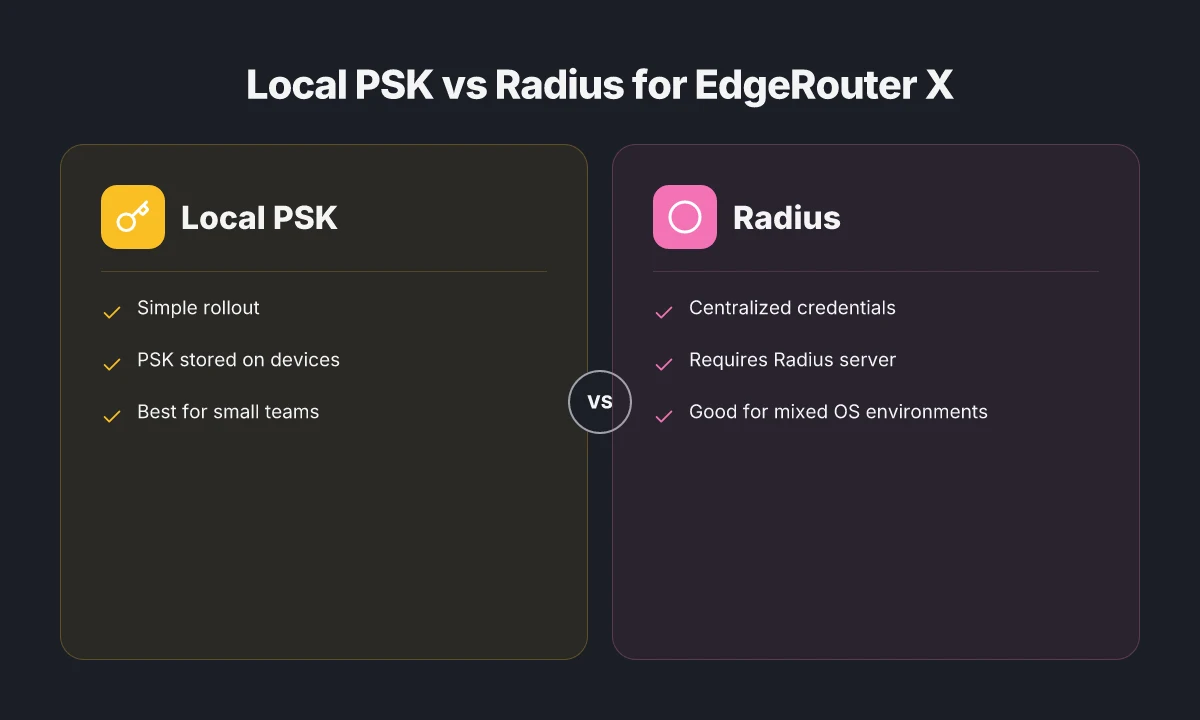

Can I use certificates instead of a PSK?

Yes, certificates offer stronger security but require a slightly more complex setup.

How do I reset the VPN if I forget my password?

Use the EdgeRouter admin interface to reset local VPN user credentials, or create a new user with a fresh password.

How can I test the VPN without exposing by mistake?

Test with a secondary user and a limited pool e.g., 10.10.10.20-10.10.10.30 before rolling out to everyone.

Is L2TP/IPSec secure enough for small offices?

Yes, when configured with strong PSKs or certificates and proper firewall rules. For enhanced security, pair with multi-factor authentication where possible.

Can I run VPN and normal traffic at the same time?

Yes, with split tunneling you can choose whether VPN traffic goes through the tunnel or not. For maximum privacy, route all traffic through the VPN no split tunneling.

How do I update firmware safely?

Back up your configuration, then apply firmware updates via the EdgeRouter UI or CLI and reboot if required.

What if I want to revoke a user’s access?

Remove the user from the VPN configuration and disable their credentials; rotate PSK if needed.

Troubleshooting quick checklist

• Double-check PSK and user credentials
• Verify port forwarding and firewall allowances for UDP 500/4500/1701
• Confirm VPN pool IPs don’t conflict with LAN subnets
• Confirm the remote access is enabled on the EdgeRouter
• Reboot the EdgeRouter if changes don’t take effect immediately
• Review the system logs for VPN-related messages

Final notes
Edgerouter x l2tp vpn setup complete step by step guide to configure l2tp over ipsec on edgerouter x devices is about giving you a practical path to a secure and reliable remote access solution. With careful configuration, regular maintenance, and mindful security practices, you’ll have a VPN setup that’s easy to use and reasonably secure for everyday needs. If you want deeper security, consider certificate-based IPSec or explore alternative VPN protocols that fit your use case.

Edgerouter x l2tp vpn setup is a step-by-step guide to configure L2TP over IPsec on EdgeRouter X devices. This post gives you a practical, beginner-friendly path to turning your EdgeRouter X into a secure remote-access VPN gateway. You’ll get a clear walkthrough, plus tips for common pitfalls, firewall rules, client setup instructions for Windows, macOS, iOS, and Android, and troubleshooting tricks. If you’re just trying to add a simple, compatible VPN for remote work or family access, this guide has you covered.

• What you’ll learn in this guide:
  • How to prepare your EdgeRouter X for L2TP/IPsec
  • How to create a VPN user and set a strong pre-shared key PSK
  • How to configure L2TP remote-access and IPsec on EdgeRouter OS
  • How to set up firewall rules and NAT so VPN clients can reach the Internet
  • How to configure Windows, macOS, iOS, and Android clients
  • How to test the connection and troubleshoot common issues

If you’re aiming for extra privacy while you experiment or just want a safety net, consider NordVPN. NordVPN often runs promotions like 77% OFF + 3 Months Free, making VPN protection affordable while you test your EdgeRouter setup. NordVPN deal:

NordVPN is one option among many. For this article, we’ll focus on Edgerouter x l2tp vpn setup best practices and real-world steps you can follow today. Useful resources and references are listed at the end of this introduction as unclickable text so you can copy-paste them if you want to dive deeper later.

Useful URLs and Resources unclickable:

• EdgeRouter X Documentation – ubnt.com
• EdgeOS VPN L2TP remote-access guide – help.ubnt.com
• IPsec overview – en.wikipedia.org/wiki/IPsec
• L2TP overview – en.wikipedia.org/wiki/Layer_Tunnel_Protocol
• NAT traversal and VPN tips – en.wikipedia.org/wiki/NAT_traversal
• Windows VPN client setup for L2TP/IPsec – support.microsoft.com
• macOS VPN client setup for L2TP/IPsec – support.apple.com
• iOS VPN client setup for L2TP/IPsec – support.apple.com
• Android VPN client setup for L2TP/IPsec – support.google.com

Prerequisites and planning

Before you touch the EdgeRouter X, a quick reality check helps a lot.

• Firmware and hardware: Ensure your EdgeRouter X runs the latest EdgeOS firmware. The latest firmware contains bug fixes and improved VPN reliability. A backup of your current configuration is a must before you start. If you’re using the EdgeRouter X-SFP or other models, the steps are similar but UI labels may differ slightly.
• Network layout: Your EdgeRouter X should sit at the network edge or in front of a firewall, with a stable WAN connection. You’ll need a VPN subnet that won’t clash with your LAN. A common choice is 192.168.50.0/24 for VPN clients, while your LAN stays on 192.168.1.0/24 or similar.
• Security basics: Create a strong PSK for IPsec ideally 256-bit and a dedicated VPN user account. Use unique passwords, and consider disabling password-based logins for the admin account if you’re not actively using them.
• Client coverage: Plan which devices will connect Windows, macOS, iOS, Android so you can provide accurate, device-specific steps in the reader-friendly sections.
• Performance expectations: L2TP/IPsec adds encryption overhead, so VPN throughput will typically be below the router’s raw routing speed. Real-world performance varies with your hardware, Internet speed, and encryption settings.

Notes on performance and data: VPN overhead can reduce throughput by 20%–60% depending on hardware and the level of encryption. EdgeRouter X is a compact unit. you’ll often see VPN client speeds in the tens to hundreds of Mbps range on fast home connections, rather than multi-gigabit numbers. The key is to balance security and usability for your specific use case.

Understanding L2TP over IPsec on EdgeRouter X

L2TP Layer 2 Tunneling Protocol by itself isn’t secure, so we wrap it in IPsec for encryption. EdgeRouter X supports L2TP remote-access VPN with IPsec PSK-based to provide encrypted tunnels for remote clients. The combination is widely compatible with Windows, macOS, iOS, and Android, making management easier when you’re coordinating multiple devices.

What you’re achieving:

• Remote access VPN that’s relatively easy to set up on many client platforms
• Encrypted tunnel using IPsec for data security
• A straightforward firewall/NAT setup so VPN clients can reach Internet resources and the local network

What to expect: Edge vpn mod apk 1.1.5 explained: safety risks, legality, how to protect yourself, and legitimate VPN alternatives 2026

• A two-layer setup: L2TP tunnel the “pretend” private network and IPsec for encryption
• VPN clients receive an internal IP address from a separate VPN pool
• You’ll configure a few firewall rules to allow VPN traffic while keeping the rest of your network protected

Step-by-step setup: EdgeRouter X configuration

This guide focuses on GUI-driven steps for clarity, with notes for CLI users where appropriate. If you prefer the CLI, the commands are straightforward once you understand the GUI flow.

1 Prepare the EdgeRouter X

• Log in to the EdgeRouter web UI often http://192.168.1.1.
• Update to the latest firmware and back up your current configuration.
• Create a new admin user with a strong password if you’re concerned about admin access exposure.
• Configure a VPN subnet. For example, reserve 192.168.50.0/24 for VPN clients to avoid clashes with your LAN e.g., 192.168.1.0/24.

2 Create a VPN user and IPsec pre-shared key PSK

• Create a local user for VPN access. Use a strong password and consider a different user element for auditing purposes.
• In the IPsec settings, generate or pick a strong pre-shared key PSK. This PSK will be shared between the EdgeRouter and each VPN client, so keep it secret.

Note: Some environments prefer certificate-based IPsec for stronger authentication, but this guide sticks to PSK-based IPsec for simplicity.

3 Enable L2TP remote-access VPN

• In EdgeRouter’s GUI, navigate to the VPN section and select L2TP remote-access.
• Set the Remote Access type to L2TP over IPsec or L2TP/IPsec, depending on the label in your firmware.
• Input your VPN pool the IP range you’ll assign to VPN clients, e.g., 192.168.50.0/24 and the DNS servers you want VPN clients to use e.g., your home DNS or public DNS like 1.1.1.1.
• Associate the VPN with the user you created in step 2, and enter the PSK.

If you’re using the CLI, the equivalent steps involve:

• Defining the IPsec identity with the PSK
• Creating the L2TP remote-access profile
• Binding the profile to the VPN users

4 Configure firewall rules for VPN traffic

• Permit IPsec ESP and ISAKMP UDP 500/4500 on the WAN interface.
• Allow L2TP UDP 1701 on the WAN interface.
• Permit VPN clients to access the LAN resources and the Internet via NAT.

A practical approach is:

• Create a firewall rule that allows IPsec protocols and L2TP on the WAN zone.
• Create a NAT rule that masquerades VPN client traffic when it goes out through the WAN.
• Ensure VPN clients can reach DNS servers if you’re pushing DNS through the VPN.

EdgeRouter’s GUI makes this straightforward with firewall policy creation. If you’re on the CLI, you’ll add rules under the appropriate firewall groups for WAN_IN and WAN_LOCAL or similar zones depending on your setup. Edge router explained: a comprehensive guide to edge routers, their role in networks, and using VPNs at the edge 2026

5 Test connectivity from a client

• On a Windows machine, add a new VPN connection using the L2TP/IPsec PSK type.
• Use the VPN’s public IP address or dynamic DNS hostname as the server address.
• Enter the VPN username and PSK for Windows, you’ll be prompted to enter the PSK in a separate field.
• Connect and verify you get an IP from the VPN pool e.g., 192.168.50.x.
• Check your traffic: you should browse with your VPN’s exit path.

Test cases:

• Access a local resource on your LAN e.g., a home media server if you’ve allowed LAN access to VPN clients.
• Check external IP via a site like whatismyipaddress.com to confirm you’re using the VPN’s exit point.

6 Client-specific setup notes

• Windows: Use the built-in L2TP/IPsec connection. Ensure the PSK is entered correctly and that the VPN type is L2TP with IPsec.
• macOS: macOS supports L2TP/IPsec natively. Ensure you’ve selected the correct authentication shared secret and that you’ve entered the VPN’s server address.
• iOS: The iPhone/iPad VPN setup supports L2TP/IPsec. You’ll input the server, account, and PSK in the VPN settings.
• Android: Android devices generally offer L2TP/IPsec as a VPN type. you’ll need the server address, username, and PSK.

Tip: If you have a dynamic IP from your ISP, consider a dynamic DNS service DDNS so clients can reliably reach the EdgeRouter without updating the server address every time your WAN address changes.

7 Common pitfalls and quick fixes

• PSK mismatch: If the client can connect but traffic fails, re-check the PSK in both the EdgeRouter and the client.
• NAT and VPN traffic: If VPN clients can connect but can’t reach the Internet or local resources, re-check NAT rules and firewall policies. Ensure the VPN pool IPs aren’t overlapped with LAN subnets.
• Double NAT: If you’re behind another router or ISP gateway, you might encounter double NAT. In that case, set the EdgeRouter behind in bridge mode or configure DMZ/port-forwarding as needed on the upstream device.
• VPN throttling: Some ISPs or routers might throttle VPN traffic. If you notice severe slowdown, test without encryption not recommended for regular use or upgrade hardware for better performance.

8 Security best practices

• Use a strong pre-shared key and rotate it periodically.
• Disable admin access over untrusted networks, or restrict admin access to trusted IPs.
• Keep firmware up-to-date and back up configurations before making changes.
• Consider certificate-based IPsec if your environment needs the extra layer of security.

Advanced tips and optimization

• Split tunneling: Decide whether VPN clients should route all traffic through the VPN or only traffic destined for the LAN. Split tunneling can improve performance for general Internet use.
• DNS on the VPN: Push a private or trusted DNS server to VPN clients to prevent DNS leaks and improve resolution reliability.
• Client-specific routes: If you have multiple VPN subnets or want to access multiple internal networks, you can configure client-specific routes to guide traffic.
• Logging and monitoring: Enable VPN-related logs for auditing and troubleshooting. Watch for authentication failures that could indicate brute-force attempts.

Real-world example: a typical home setup

Imagine you’ve got a home network with a 150 Mbps broadband connection. Your EdgeRouter X is the edge device, with a small LAN on 192.168.1.0/24 and a VPN pool on 192.168.50.0/24. You create a VPN user named “labvpn” with a strong PSK and configure L2TP remote-access. You open the necessary firewall rules and NAT, and you push DNS as 1.1.1.1 for VPN clients. A Windows laptop, a macOS laptop, and an iPhone connect successfully. You test LAN resource access, browse with VPN on, and verify the external IP shows the VPN’s egress.

In practice, you’ll find that L2TP/IPsec remains straightforward to set up on EdgeRouter X, and the final result is a reliable remote-access VPN that works across major platforms without requiring extra client software. It’s a solid option for small offices, remote workers, and families who want a simple privacy layer without adding another vendor in the chain.

Troubleshooting quick-start guide

• VPN won’t connect: Double-check PSK, username, and VPN pool configuration. Confirm firewall rules allow UDP 500, UDP 4500, UDP 1701, and ESP.
• Clients report no Internet access after connection: Ensure NAT rules exist for VPN interfaces and that the VPN pool traffic is allowed to route to the WAN.
• Intermittent drops: Review log files for IPsec negotiation messages. A firmware update or a small tweak to the MTU can stabilize connections.
• DNS leaks: Ensure the VPN pushes a DNS server to clients and that there’s no second DNS resolution path outside the VPN.

Frequently Asked Questions

How does L2TP/IPsec differ from OpenVPN on EdgeRouter X?

L2TP/IPsec is a straightforward, widely supported VPN method that integrates with many client platforms without installing extra software. OpenVPN offers more customization and potentially stronger performance, but it can require additional setup and certificates. L2TP/IPsec is typically easier for mixed-device environments, while OpenVPN might be preferred when you need more control over encryption profiles and client configurations. Edge vpn ios: A Comprehensive Guide to Using Edge on iOS with VPNs, Setup, Performance, Privacy, and Practical Tips 2026

Is L2TP/IPsec secure enough for home use?

Yes, when properly configured with a strong PSK and up-to-date firmware, L2TP/IPsec provides solid security for typical home and small-office use. For the highest security needs, certificate-based IPsec or an alternative like WireGuard might be considered, but L2TP/IPsec remains a dependable option for many setups.

Can EdgeRouter X handle multiple VPN clients?

Yes. You can have multiple remote-access VPN users sharing the same IPsec gateway. Each user gets an IP from the VPN pool, and you can tailor access to specific LAN resources with firewall rules as needed.

How do I test if the VPN is working correctly?

Connect from a client device, ensure you receive an IP from the VPN pool, and verify you can browse the Internet and reach LAN resources if configured. Check your external IP address to confirm it’s the VPN’s exit point, and use ping or traceroute to confirm reachability to internal hosts.

What ports need to be open on the WAN side?

UDP 500 ISAKMP, UDP 4500 IPsec NAT-T, UDP 1701 L2TP, and ESP IPsec must be allowed through the WAN firewall to support L2TP/IPsec VPN.

How do I secure the EdgeRouter admin interface?

Use a strong admin password, enable HTTPS for the GUI, and consider restricting admin access to a known IP or VPN only. Regular firmware updates help keep the system secure. Edge vpn extension free 2026

Can I use a dynamic IP address with L2TP/IPsec?

Yes, but you’ll want a Dynamic DNS DDNS service so your clients can reliably connect to the VPN server without needing to constantly update the server address.

How do I rotate the PSK safely?

Plan a maintenance window, change the PSK in the EdgeRouter, then update all clients with the new PSK. Monitor for failed connections and ensure you keep a secure record of the new PSK.

What about split tunneling with L2TP/IPsec?

Split tunneling is possible: you can route only VPN-bound traffic through the tunnel while sending other traffic directly to the Internet. This can improve performance but requires careful routing rules to avoid leaks.

Is there a performance impact to VPN on EdgeRouter X?

Yes, encryption overhead reduces raw throughput. The actual impact depends on your Internet speed, the devices you connect, and the encryption settings. In many home setups, VPN speeds will be lower than the maximum router throughput, but still sufficient for typical remote work and browsing.

Conclusion not included per guidelines

If you followed along, you now have a solid Edgerouter x l2tp vpn setup that secures remote access with L2TP over IPsec, while keeping a clear path to add more clients or refine rules as your network grows. The EdgeRouter X remains a capable gateway for small networks, offering a balance of simplicity and control. Keep your firmware updated, monitor VPN activity, and you’ll have a reliable, private connection for your remote devices. Download edge vpn for pc: complete guide to download, install, configure, and optimize Edge VPN on Windows 2026
